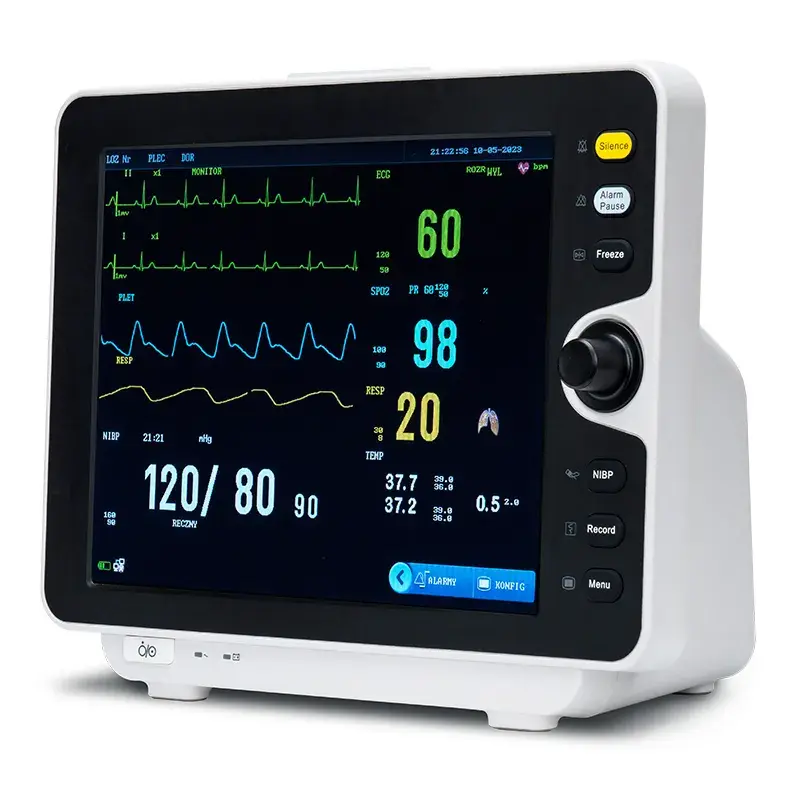

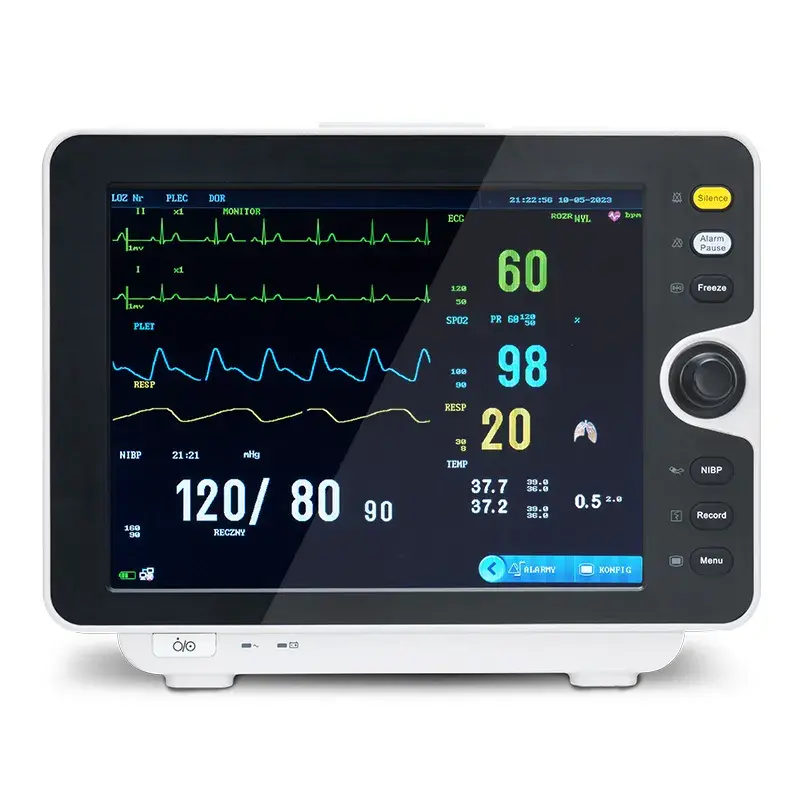

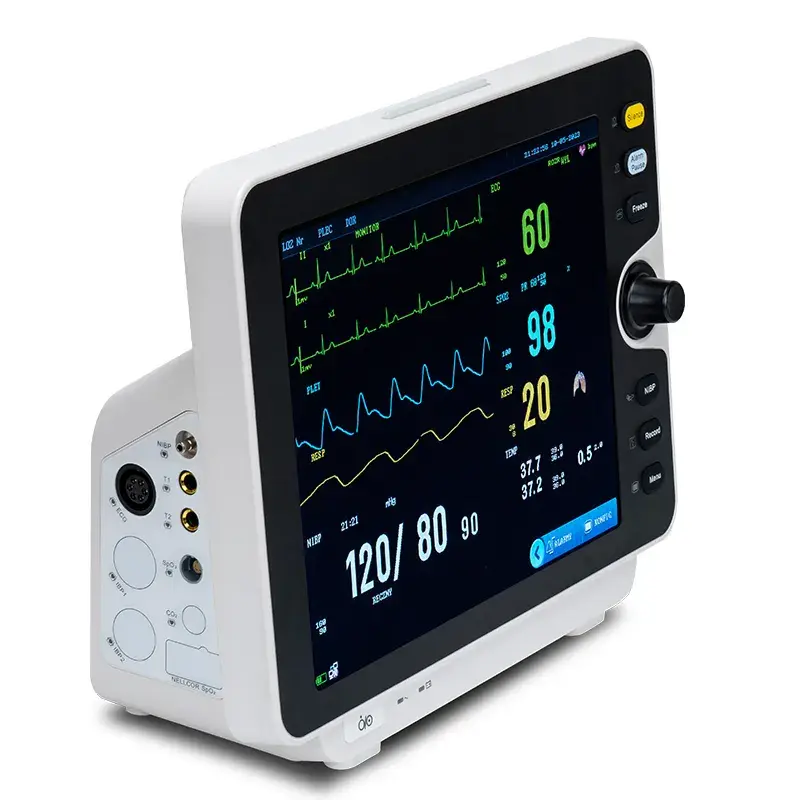

Multi-Parameter Patient Monitor YK-8000B

Multi-Parameter Patient Monitor YK-8000B 1
Multi-Parameter Patient Monitor YK-8000B 2
Multi-Parameter Patient Monitor YK-8000B 3
Multi-Parameter Patient Monitor YK-8000B 4
Multi-Parameter Patient Monitor YK-8000B 5

Multi-Parameter Monitoring

High-Resolution Display

Real-Time Analysis & Insights

Anti-Interference Technology

Robust Data Storage Capability

Short Description

This device monitors multiple vital signs, including ECG (3/5-lead electrocardiogram), SpO2 (oxygen saturation), NIBP (non-invasive blood pressure), RESP (respiration rate), 2-TEMP (dual temperature), and PR/HR (pulse rate/heart rate). Optional parameters like EtCO2 (end-tidal CO2) can be added for enhanced monitoring. It also provides a holistic view of patient health, enabling clinicians to assess critical parameters in real time for timely interventions.

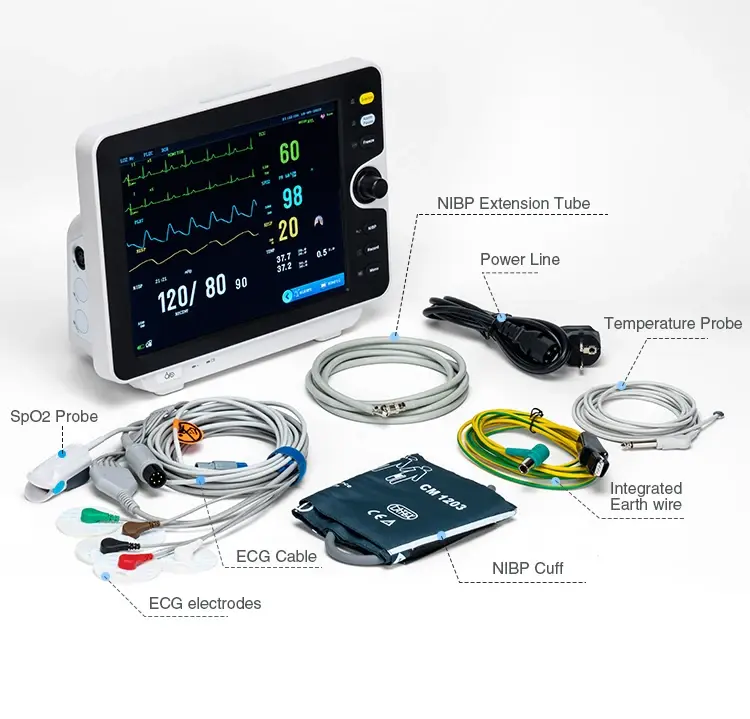

  • ECG Cable
  • Spo2 Sensor
  • Temperature Sensor
  • Nibp Cuff & Tube
  • Power Cord
  • Ground Wire
  • User Manual
  • Display: 12.1 inch TFT Screen
  • Parameter: Spo2, Pr, Nibp, ECG, Resp, Temp
  • Optional: Etco2, Nellcor Spo2, 2-IBP, Recorder, Trolley, Wall Mount
  • Power Requirements: AC 100 ~ 240V, 50Hz/60Hz
  • Built-in rechargeable 11.1V 24wh Li-ion battery
  • Download detailed brochure here.

The product has international certification including CE, FSC, ISO9001, ISO13485

  • Features a 12.1-inch high-resolution color TFT LCD display, ensuring clear and readable presentation of patient data, waveforms, and trends.
  • Designed to be thinner and lighter, making it convenient for transport within healthcare facilities, such as between wards or for bedside use in ambulances and operating rooms.
  • Provides real-time S-T segment analysis and pacemaker detection, critical for detecting cardiac abnormalities like arrhythmias or ischemia.
  • Features a 3-level audio/visual alarm system to alert healthcare providers to critical changes in patient status, improving response times in emergencies.
  • Supports a wireless central monitoring system for integration with ICU, CCU, or OR networks, enabling seamless data sharing and remote monitoring.
  • Compatible with smart IT solutions and Wi-Fi for dynamic trend tracking and centralized patient data management.
